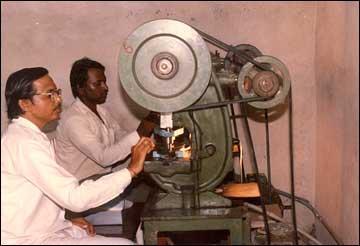

Punching Cut Mica

Punching Cut Mica
Punching Cut Mica
Product Code : H-10
Brand Name : Hi Rise
Product Description

STANDARD MICA SHIELD SIZES

NO

TYPE A/B

TYPE A

TYPE B/H

TYPE TA-28



L



B

L



B

L



B

L



B

O

95

X

24

95

X

30

95

X

34



--



I

115

X

24

115

X

30

115

X

34

133

X

47

II

140

X

24

140

X

30

140

X

34

158

X

47

III

165

X

24

165

X

30

165

X

34

183

X

47

IV

190

X

24

190

X

30

190

X

34

208

X

47

V

220

X

24

220

X

30

220

X

34

238

X

47

VI

250

X

24

250

X

30

250

X

34

268

X

47

VII

280

X

24

280

X

30

280

X

34

298

X

47

VIII

310

X

24

320

X

30

320

X

34

338

X

47

IX

320

X

24

340

X

30

340

X

34

358

X

47

X

340

X

24

370

X

30

370

X

34

378

X

47

XI

360

X

24

400

X

30

400

X

34



--



XII

370

X

24

430

X

30

430

X

34



--



XIII

400

X

24

460

X

30

460

X

34



--



XIV

430

X

24

500

X

30

500

X

34



--



The above dimensions are in millimetres
L=Length B=Breadth T=Thickness

Standard Thickness

0.10 - 0.15 mm/0.13 - 0.17 mm.

0.15 - 0.20 mm/0.18 - 0.22 mm

0.20 - 0.30 mm/0.30 - 0.40 mm.
